Get started with CellStore, Part 4: Query CellStore

This page is a placeholder, its contents are being worked on.

• 1: Introduction
• 2: Server Endpoints
• 3: Import an XBRL Filing
• 4: Query CellStore

Query CellStore

There are several options to test the querying of CellStore.

Step 1: Acquaint yourself with the filtering mechanism

In this section we propose to use either the Admin UI or the Rest API:

Option 1: Query CellStore using the Admin UI

If you have imported the Apple 10Q in previous step, you can now use CellStore Admin UI to query some facts:

1. Open the Admin UI at http://localhost:8080/ in the browser.
2. Navigate to the Facts collection.
3. Click on Filters
4. In the field marked with “Add a dimension name you would like to filter” insert xbrl:concept and press Enter.
5. In the filter shelf in the field “Add dimension value” add: us-gaap:Assets and press Enter.

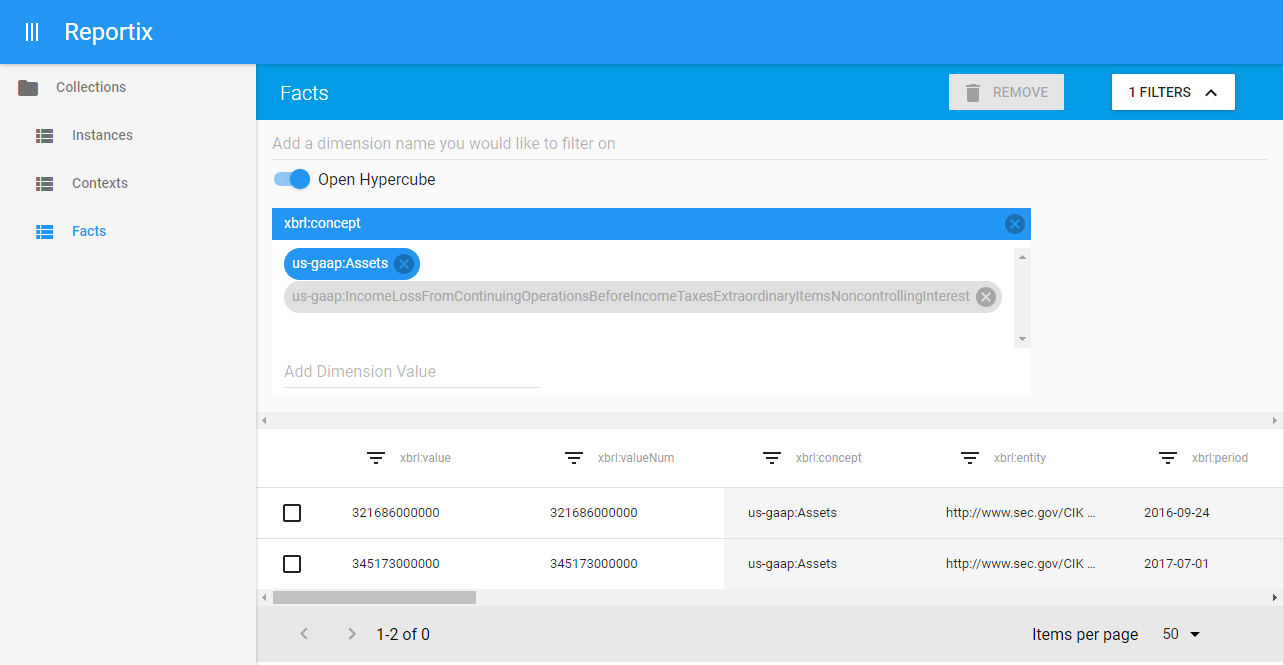

Now you should see only the facts that have dimension/value xbrl:concept=us-gaap:Assets:

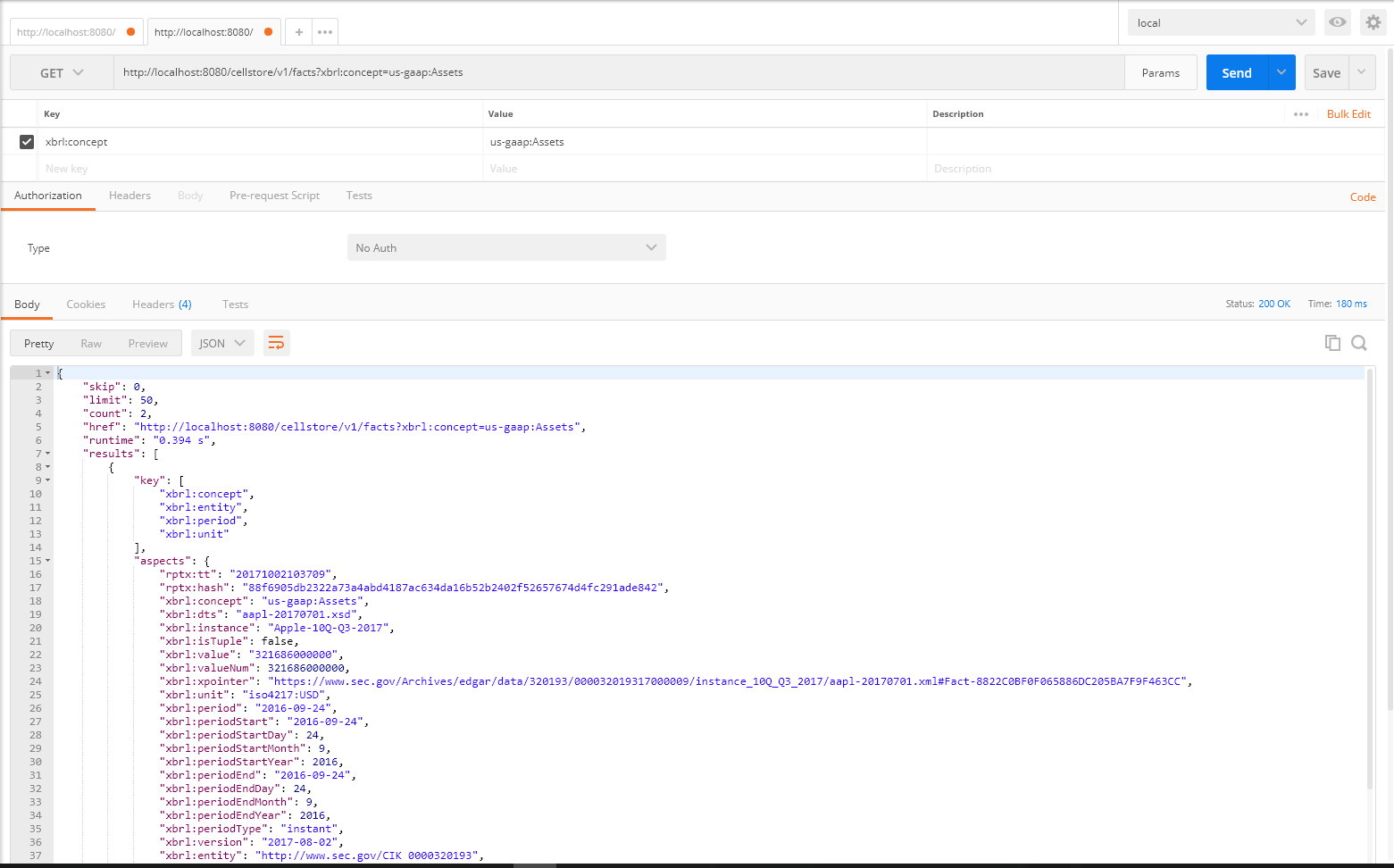

Option 2: Query CellStore using the Rest API

For interfacing with the Rest API directly we suggest using tools like:

• Curl (Command line tool)
• Postman (Rest UI / Chrome extension)
• Insomnia (Rest UI)

In order to issue the same query request that we ran in Option 1, we choose the following settings:

• Endpoint: /facts
• HTTP method: GET
• Parameters:
  • xbrl:concept=us-gaap:Assets

The alternative curl command looks like this:

curl http://localhost:8080/cellstore/v1/facts?xbrl:concept=us-gaap:Assets

You can also use your browser for querying: http://localhost:8080/cellstore/v1/facts?xbrl:concept=us-gaap:Assets.

When using the browser for querying we suggest using a pretty printing plugin like JsonView for Chrome.

Try to filter in the same way the /instances or /contexts endpoint.

Common parameters of the Rest API

There are several parameters that you can use on every endpoint:

• open (true/false): Issue either an open hypercube or closed hypercube query
  • Open hypercube: returns all facts matching the filtering dimensions
  • Closed hypercube: returns all facts matching the filtering dimensions and the filtered key dimensions (In the Admin UI the key dimensions are highlighted with a gray background). Each endpoint has some default key dimensions that are automatically filtered. For example, the Facts endpoint is filtered by xbrl:concept=*&xbrl:entity=*&xbrl:period=*&xbrl:unit=*.
• limit (number): Limit the number of returned items (default: 50).
• skip (number): Offset the results for paging (default: 0).
• paging (true/false): Adds the fields lastHref (link to the “last” page) and maxCount (default: false). Warning: Adding paging=true can have a significant performance impact.
• debug (true/false): Adds debug information, such as the issued hypercube, to the response of each request (default: false).

Would you like to understand the open parameter?

You could try to filter xbrl:concept=us-gaap:IncomeLossFromContinuingOperationsBeforeIncomeTaxesExtraordinaryItemsNoncontrollingInterest with open=true or open=false. Also add debug=true to inspect the query hypercube used to query CellStore.
