Get started with CellStore, Part 3: Import an XBRL Filing

This page is a placeholder, its contents are being worked on.

Estimated reading time: 2 minutes

Import an XBRL filing

For importing XBRL filings the Rest API provides an endpoint:

  • /cellstore/v1/instances/import

This can be used to import an XBRL filing.

Step 1: Download an example XBRL filing

For example, go to the Apple Filing Details of the Q3/2017 10-Q.

Download all files listed under Data Files:

and add them to a single zip archive (for example, using 7-zip).

Alternative: Simply download the prepared apple_10Q_Q3_2017.zip.

Step 2: Import the XBRL filing into CellStore

There are several options to actually import the filing. We propose two different options to choose from:

Option 1: Import an XBRL filing using the Admin interface

  1. After starting the server, open the Admin UI at http://localhost:8080/ in the browser.
  2. In the instances collection click on “Upload”.
  3. Select the zip we have created in the previous step.
  4. Optionally, fill in the fields. We chose the following values as example:
    • ID: Apple-10Q-Q3-2017 (Unique identifier of the imported archive [Optional], will be automatically created if left blank)
    • Base URL: https://www.sec.gov/Archives/edgar/data/320193/000032019317000009/ (Relative URLs will be resolved against this default base URL [Optional])
    • Version: 2017-08-02 (We have chosen the filing date here. The version is useful when loading amendments to distinguish the facts and automatically retrieve the latest.)
    • Plugins: - (We are not applying any plugin. A Plugin could handle the data in a customized way for usecase specific optimizations.)
    • Import DTS?: false (We don’t want to import taxonomy information such as Elements, Labels etc. For this we would have to setup a local taxonomy cache first.)
  5. Click “Submit”

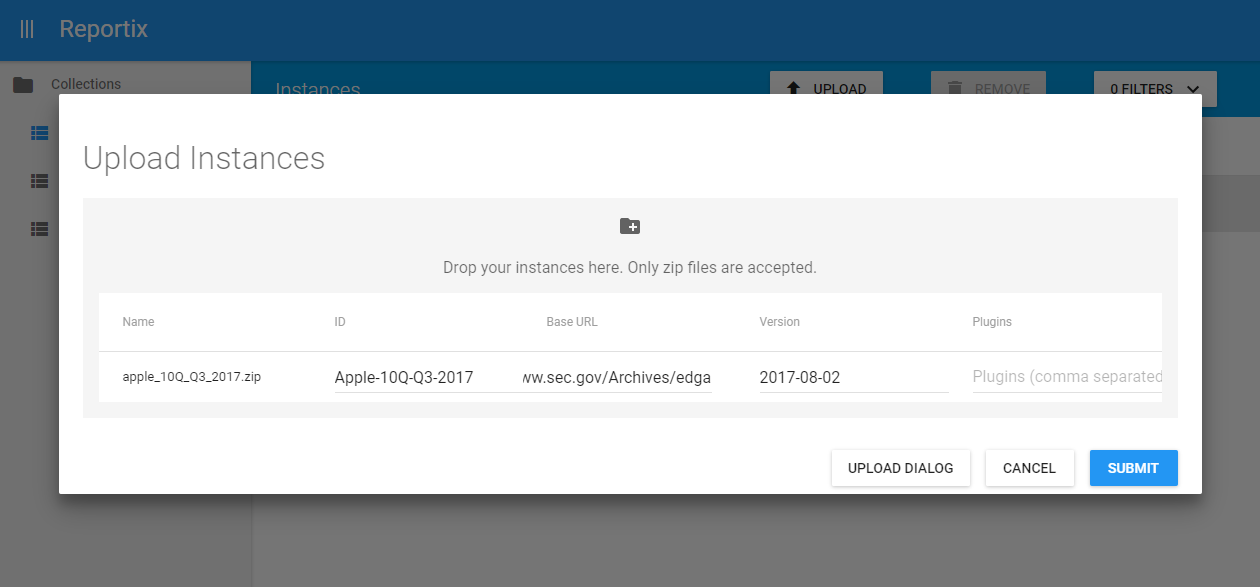

Import an Apple instance with the Admin UI

Option 2: Import an XBRL filing using the Rest API

For interfacing with the Rest API directly we suggest using tools like:

In order to issue the same import command that we submitted in Option 1, we choose the following settings:

  • Endpoint: /instances/import
  • HTTP method: POST
  • Header: Content-Type: application/zip
  • Body (binary): apple_10Q_Q3_2017.zip (as created above or downloaded from apple_10Q_Q3_2017.zip)
  • Parameters:
    • instanceId=Apple-10Q-Q3-2017
    • baseUrl=https://www.sec.gov/Archives/edgar/data/320193/000032019317000009/
    • version=2017-08-02
    • importDts=false

The according curl command looks like this:

curl --request POST \
 --header "Content-Type: application/zip" \
 --data-binary "@apple_10Q_Q3_2017.zip" \
 "http://localhost:8080/cellstore/v1/instances/import?instanceId=Apple-10Q-Q3-2017&version=2017-08-02&baseUrl=https://www.sec.gov/Archives/edgar/data/320193/000032019317000009/"

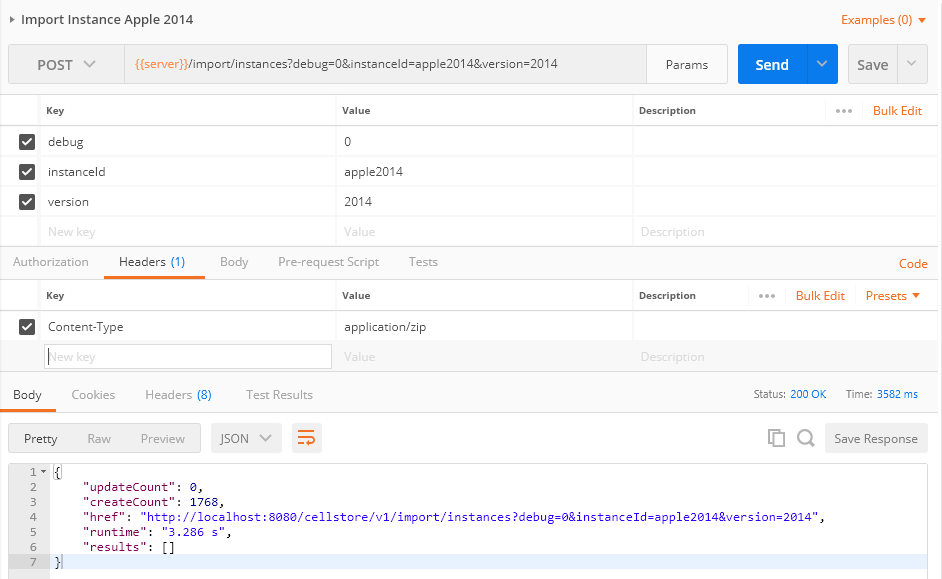

Or in Postman:

Import an Apple instance with Postman

Do you want to learn more about the Rest API Endpoints and Parameters?

You can find a complete documentation of the Rest Endpoints and parameters in the Rest API Endpoints.

On to Part 4 »
